Introduction：

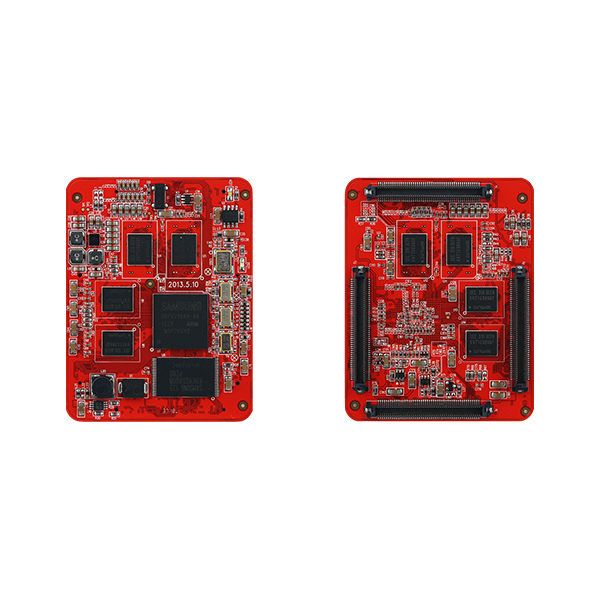

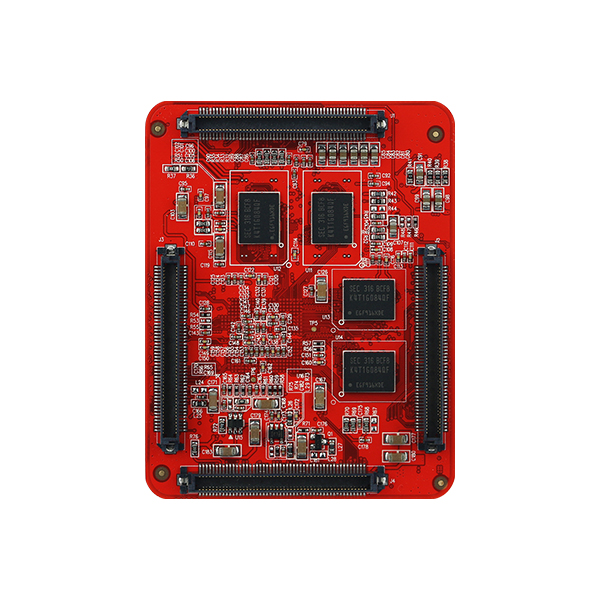

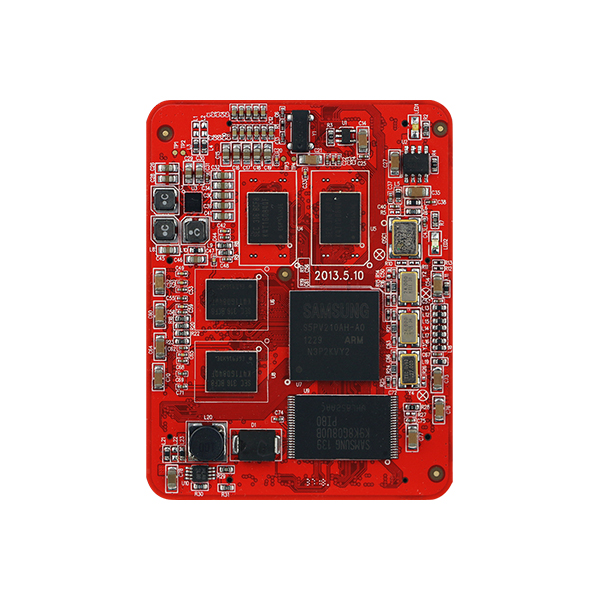

    CES-V210-CORE, based on Samsung ARM Cortex-A8 S5PV210 application processor, support 1GHz processing speed, onboard equipped an intelligent power management chip to achieve intelligent power management, with ultra-low power consumption and low temperature characteristics. Built-in 3D graphic engine, the processor provides superior image processing capabilities and HDMI high-definition video output interface.

    CES-V210-CORE supports Windows CE, Android, Linux operating system. User can make any choice according to demand, and provide a complete solution for easier product rapid prototyping. CES-V210-CORE meets different product applications, including medical equipment, touch machine, industrial control equipment, self-service refueling equipment, handheld PDA, POS machine, teaching equipment and other industry products.

Feature

●  Adopt Samsung Cortex™-A8 S5PV210 Processor，frequency 1GHz

●  Onboard 1GB DDR2，1GB NAND FLASH

● Support 2D/3D Image acceleration，support MPEG-4/ H.263/H.264 Format codec，up to 1080p@30fps

●  Support 10M/100M Ethernet

●  Support USB2.0、USB OTG2.0、UART、SD Card、GPIO、Camera

●  Support Android4.0/2.3/2.2、Linux3.2 、Windows CE6.0/7.0

●  Excellent Intelligent Power Management Circuit

●  Excellent hardware design solutions, rapid product molding

Specification
