● Dual Channel 30/24/18 bit LVDS, HDMI1.4 4k x 2k at 60Hz, eDP 4k x 2k @30fps, support HDMI In
● Support 4K H.264/H.265 video decoder
● Onboard WiFi/BT modules, mini-PCIE for 4G optional with SIM slot
● 6x USB2.0,6x UART,1x GbE Lan, 1x TF Slot
● Support Android7.1 and Android5.1
- Detail
- Parameter
- Downloads
- Video
Introduction

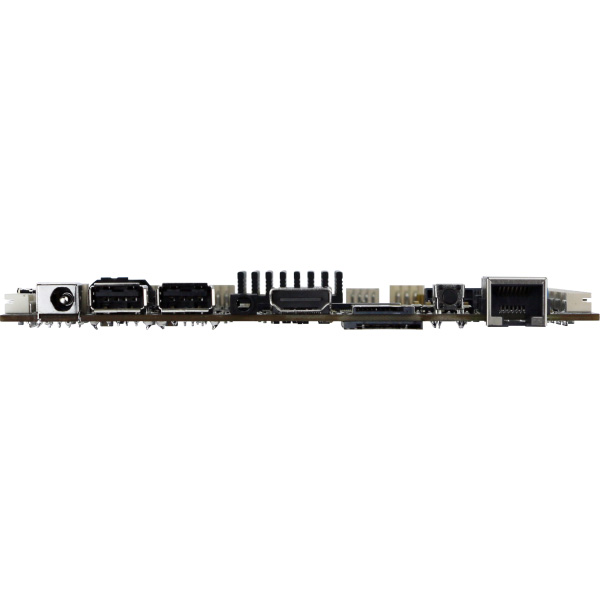

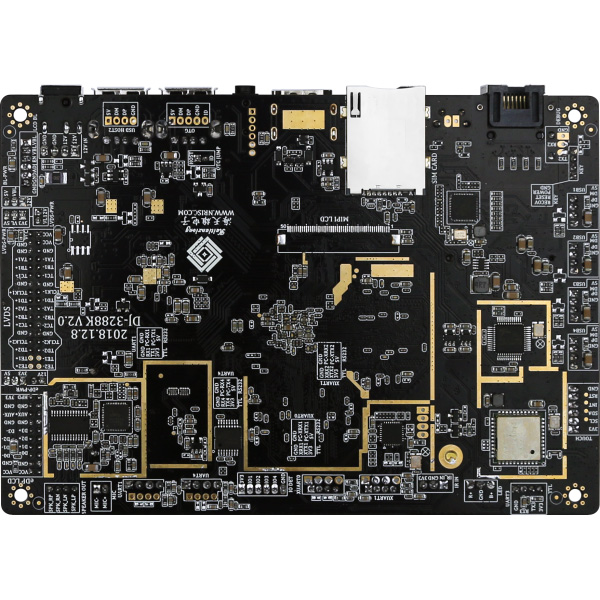

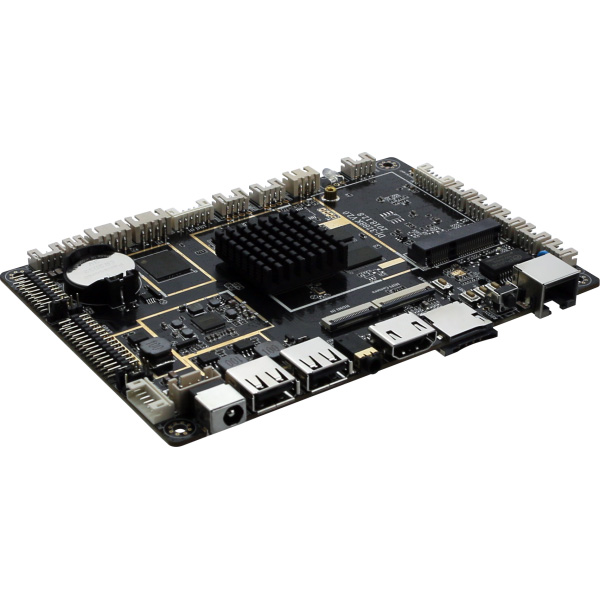

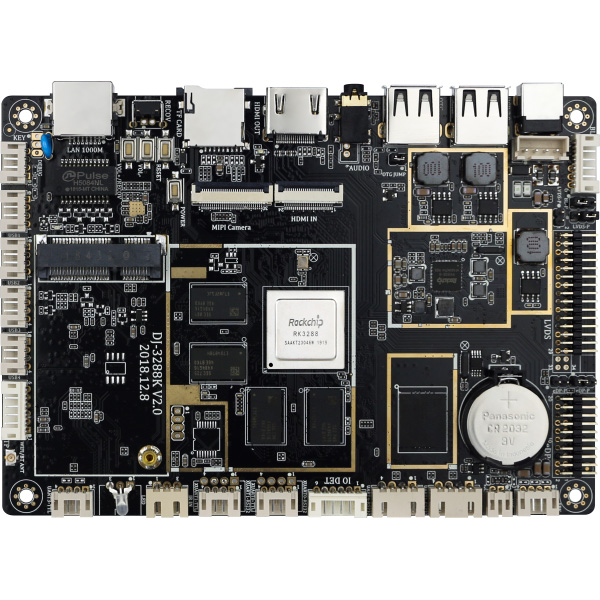

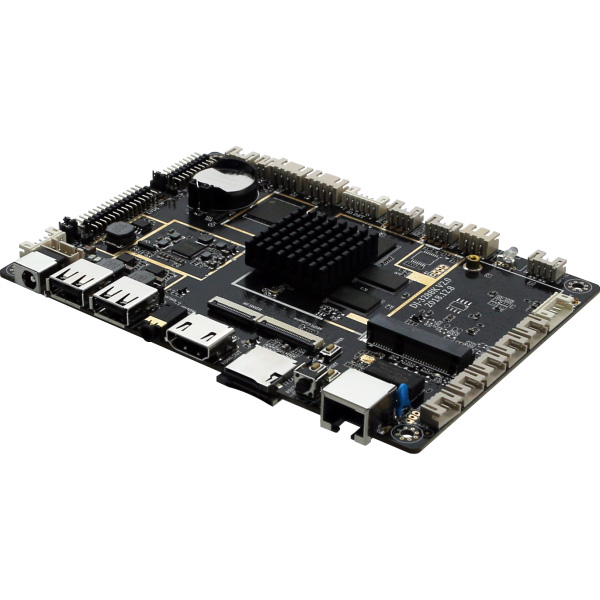

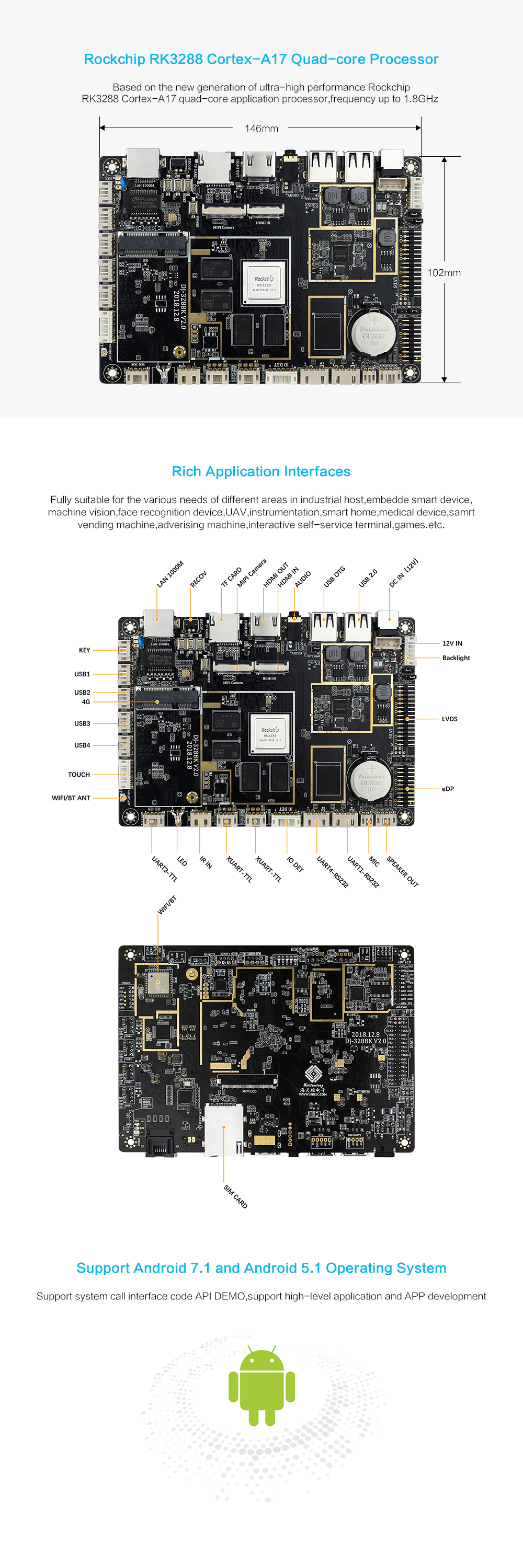

DJ-3288A is a standard 3.5 " industrial Android Motherboard based on Rockchip RK3288 Quad Core ARM Cortex-A17 processor, frequency at1.8GHz, on-chip Mali-T764 GPU, perfectly support for 4K H.265 hardware decoding. And provides a series of industrial interfaces including Gbit Ethernet, UART, USB, MIPI / LVDS /eDP, MIC / headphone / amplifier audio interfaces and many more.
It ideal for Smart Embedded Device, Self-service terminal, IoT device, AI edge computer, Medical Device, Smart Home, Digital Signage, Industrial control products and much more.
Features
● Standard 3.5-inch industrial Android motherboard with excellent stability and reliability
● Dual Channel 30/24/18 bit LVDS, HDMI1.4 4k x 2k at 60Hz, eDP 4k x 2k @30fps, support HDMI In
● Support 4K H.264/H.265 video decoder
● Onboard WiFi/BT modules, mini-PCIE for 4G optional with SIM slot
● 6x USB2.0,6x UART,1x GbE Lan, 1x TF Slot
● Support Android7.1 and Android5.1
|
CPU |
Rockchip ARM Cortex-A17 RK3288 Quad-core processor, frequency at 1.8GHz |
|
GPU |
Mali-T764 GPU，support 4K、H.265/H.264 hardware decoder |
|
Memory |
Onboard 2GB DDR3, optional 4GB |
|
Storage |
Onboard 8GB eMMC Nand Flash, optional 16GB,32GB, 64GB |
|
Ethernet |
1x RJ45 LAN, 10/100/1000Mbps 1x Mini PCIe slot with SIM Card Slot, support 3G/4G Onboard Wi-Fi/BT Module, support 802.11 b/g/n and BT4.0 |
|
Display |
1x 30/24/18-bit LVDS with 1920*1080 for dual channels at 60Hz(30Pin header) 1x Backlight 5V / 12V voltage selection (Jumper) 1x Touch screen signal (I2C, 6PIN header) 1x eDP (20Pin header) 1x Dual 4 Lane MIPI DSI (50Pin header) 1x HDMI OUT, up to 3840*2160 at 60Hz 1x HDMI IN(24Pin header) |
|
USB |
1x USB2.0 Type A 1x USB2.0 Type A(Host/OTG optional) 4x USB Pin header |
|
UART |
4x 4-wire RS232/TTL, Pin header |
|
Audio |
1x 3.5mm Head phone slot 1x MIC IN pin header 1x Speaker interface (4Pin header) With power amplifier circuit |
|
Other I/O |
1x TF Card slot 1x MIPI Camera Interface (4 Lanes 30Pin header) 4x GPIO via pin header 1x Buttons (volume plus/minus button, reset button, power button) 2x LEDs (red, blue) 1x IR circuit, support infrared remote control |
|
RTC |
Support |
|
Sleep/Wake up |
Support |
|
Power Supply |
DC-in 12V, 1x DC-in Slot, 1x 4Pin header |
|
Temperature |
Operating Temperature: -20℃ - 60℃ Humidity: 5%~95%RH, no condensation |
|
Storage Temperature: -40℃ - 60℃ Humidity: 5%~95%RH, no condensation |
|
|
Dimensions(W x D) |
146 x 102mm |
|
OS |
Android 7.1 and Android 5.1 |
