● Allwinner ARM Cortex-A7 A40i Quad Core up to 1.2GHz for industrial processor platform
● Onboard 1GB DDRIII Memory and 8GB eMMC
● Support single/dual LVDS Out up to 1920 x 1080@60fps, HDMI1.4 Out at 1080p@60Hz, 4 Lanes MIPI DSI Out
● On-chip Mail400 MP2 GPU, support OpenGL ES2.0/OpenVG 1.1, HD H.264 video encoder up to 1080p@45fps
● Onboard WiFi/BT modules, support 3G/4G by adding expansion 4G board
● Support Android7.1 and Linux3.10
- Detail
- Parameter
- Downloads
- Video
Introduction

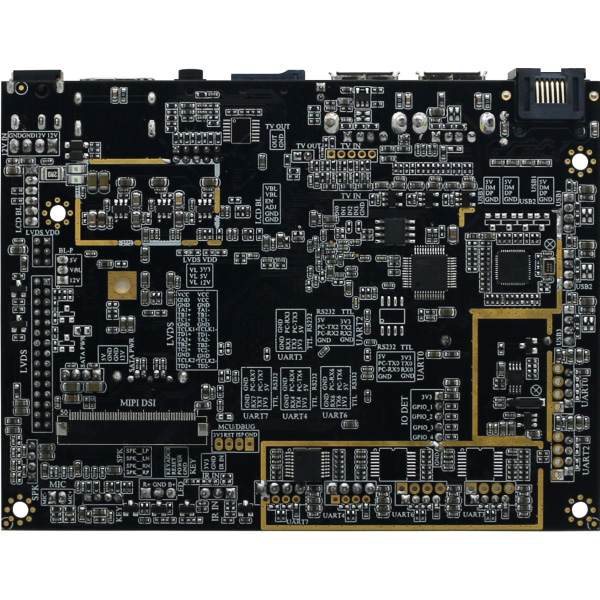

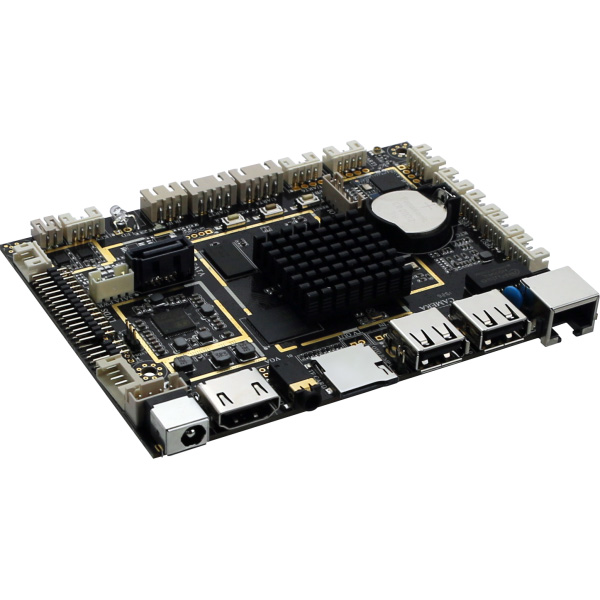

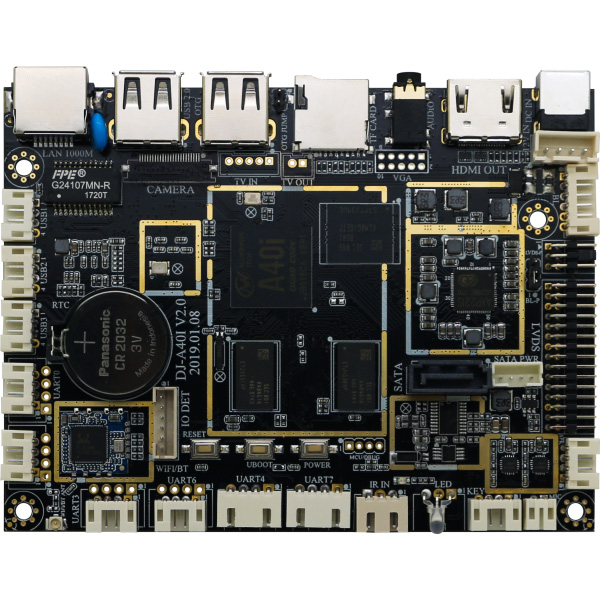

DJ-A40I is a small form-factor industrial Android Motherboard based on Allwinner Cortex-A7 A40i Quad Core processor, frequency up to 1.2GHz, this board brings powerful video and audio processing to your application, and offers rich interface such as LVDS, HDMI, eDP, LAN, UART, USB, GPIO, especially suitable for small size equipment.
It ideal for Smart Embedded Device, Self-service terminal, IoT device, AI edge computer, Medical Device, Smart Home, Digital Signage, Industrial control products and more.
Features
● 3.5” industrial mainboard with CPU Cooler, platform over 10 years lifecycle
● Allwinner ARM Cortex-A7 A40i Quad Core up to 1.2GHz for industrial processor platform
● Onboard 1GB DDRIII Memory and 8GB eMMC
● Support single/dual LVDS Out up to 1920 x 1080@60fps, HDMI1.4 Out at 1080p@60Hz, 4 Lanes MIPI DSI Out
● On-chip Mail400 MP2 GPU, support OpenGL ES2.0/OpenVG 1.1, HD H.264 video encoder up to 1080p@45fps
● Onboard WiFi/BT modules, support 3G/4G by adding expansion 4G board
● Support Android7.1 and Linux3.10
|
CPU |
Allwinner ARM Cortex-A7 A40i Quad Core processor, freq.1.2GHz |
|
GPU |
Mali400 MP2，Supports OpenGL ES 2.0 , Open VG1.1, HD video encoder |
|
Memory |
Onboard 1GB DDR3L |
|
Storage |
Onboard 8GB eMMC Nand Flash（optional 16GB） |
|
TF Card Slot |
1x TF Card Slot, support 2GB/4GB/8GB/16GB/32GB |
|
SATA |
1x SATA Slot with Power supply slot, support SATA 1.5Gb/s and SATA 3.0Gb/s |
|
Ethernet |
1x RJ45 LAN, 10/100/1000Mbps Adding expansion 4G board, support 3G/4G Onboard Wi-Fi/BT Module, support 802.11 b/g/n and BT4.0 |
|
Display |
1x Dual channels LVDS up to 1920*1080(30Pin header) 1x Touch screen signal（I2C，6PIN socket） 1x HDMI Out terminal |
|
USB |
1x USB2.0 Type A 1x OTG Type A (and as Host) 3x USB2.0 Pin header |
|
UART |
5x 4-wire RS232/TTL, Pin header (default 2x RS232 and 3x TTL) 1x 4-wire RS232/TTL, As debugging port |
|
Audio |
1x 3.5mm Head phone slot 1x MIC In（2Pin header） 1x Speaker Out (4Pin header) With power amplifier circuit, support left and right channel output, built-in 4Ω/20W, 8Ω/10W amplifier |
|
Camera |
1x CMOS Camera Interface, pin header |
|
Other I/O |
4x GPIO via pin header 1x Buttons (Reset Button, Power Button and UBoot button) 2x LEDs (red, blue) 1x IR circuit, support infrared remote control |
|
RTC |
Support |
|
Sleep/Wake up |
Support |
|
Power Supply |
DC-in 12V, 1x DC-in Slot, 1x 4Pin header |
|
Temperature |
Operating Temperature: -20℃ - 60℃ Humidity: 5%~95%RH, no condensation |
|
Storage Temperature: -40℃ - 85℃ Humidity: 5%~95%RH, no condensation |
|
|
Dimensions (W x D) |
118 x 88mm |
|
OS |
Android 7.1 and Linux3.10 |
