● Allwinner ARM Cortex-A53 A64 Quad Core up to 1.3GHz
● Onboard 1GB DDRIII Memory and 8GB eMMC
● Support single/dual LVDS Out up to 1920 x 1200, HDMI Out at 4k, 4 Lanes MIPI DSI Out
● On-chip Mail400 MP2 GPU, support 4K H.264/H.265 video decoder
● Onboard WiFi/BT modules, mini-PCIE for 4G option with SIM slot
● Support Android6.0
- Detail
- Parameter
- Downloads
- Video
Introduction

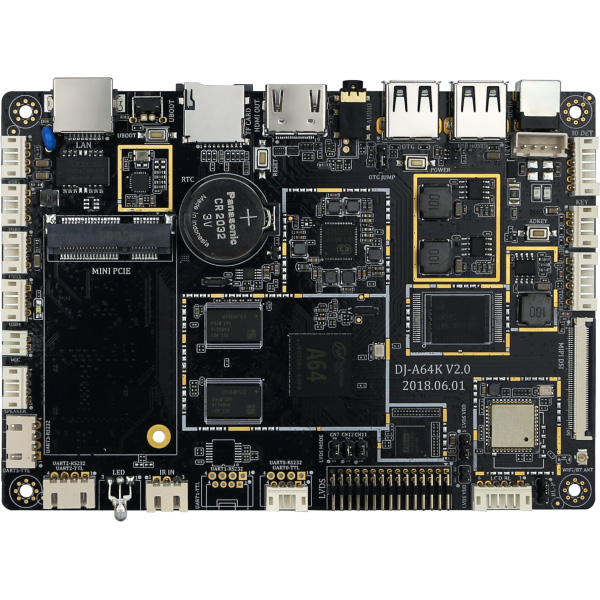

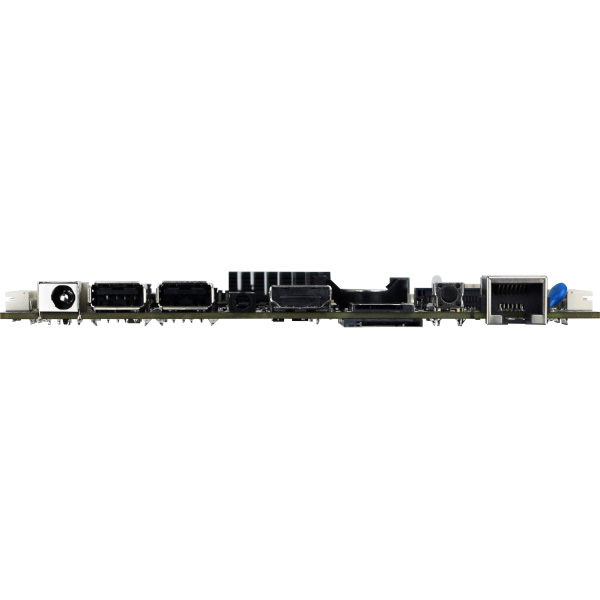

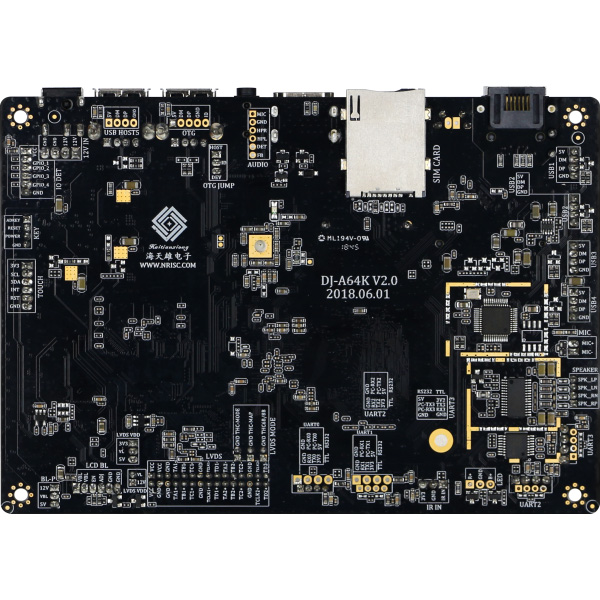

DJ-A64 is a ARM 3.5" industrial Android Motherboard based on the most cost-effective All-winner ARM Cortex-A53 64-bit A64 Quad-core processor, frequency at 1.3GHz, internally integrated Mali-400MP2 dual-core high performance image processing engine, perfectly support H.265/ H.264 video hardware decoding, 4K HDMI display output. And offers rich interfaces such as 1x LAN, 4x UART, 6x USB, MIPI / LVDS / HDMI display interfaces, MIC /headphone / Speaker out, GPIO, TF card slot and other application interfaces.
It ideal for Smart Embedded Device, Auto self-service terminal, IoT device, AI edge computer, Medical Device, Smart Home, Digital Signage, Industrial control products.
Features

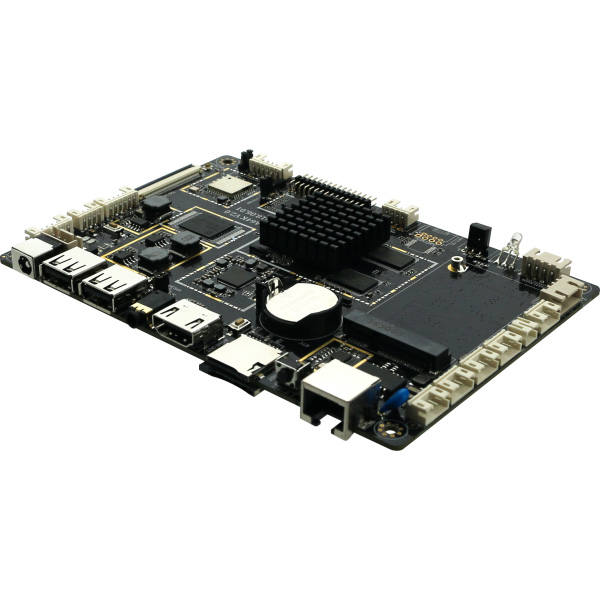

● 3.5” industrial mainboard with CPU Cooler
● Allwinner ARM Cortex-A53 A64 Quad Core up to 1.3GHz
● Onboard 1GB DDRIII Memory and 8GB eMMC
● Support single/dual LVDS Out up to 1920 x 1200, HDMI Out at 4k, 4 Lanes MIPI DSI Out
● On-chip Mail400 MP2 GPU, support 4K H.264/H.265 video decoder
● Onboard WiFi/BT modules, mini-PCIE for 4G option with SIM slot
● Support Android6.0
|
CPU |
Allwinner ARM Cortex-A53 A64 Quad Core, frequency at 1.3GHz |
|
GPU |
Mali400 MP2，Supports OpenGL ES 2.0 , Open VG1.1 |
|
Memory |
Onboard 1GB DDR3（option 2GB） |
|
Storage |
Onboard 8GB eMMC Nand Flash（option 16GB） |
|
Ethernet |
1x RJ45 LAN, 10/100Mbps 1x Mini PCIe slot with SIM Card Slot, support 3G/4G Onboard Wi-Fi/BT Module, support 802.11 b/g/n and BT4.0 |
|
Display |
1x Dual channels LVDS up to 1920*1200(30Pin header) 1x Backlight 5V/12V voltage selection（jumper） 1x Touch screen signal（I2C，6PIN socket） 1x 4 Lanes MIPI DSI interface（50PIN socket with touch screen signal, backlight control ccess） 1x HDMI Out terminal at 4k |
|
USB |
1x USB2.0 Type A, 1x OTG Type A, 4x USB2.0 Pin header |
|
UART |
4x 4-wire RS232/TTL, Pin header |
|
Audio |
1x 3.5mm Head phone slot 1x MIC In（2Pin header） 1x Speaker Out (4Pin header) With 2x 20W power amplifier out, support t Left and right channels |
|
Other I/O |
1x TF Card Slot 4x GPIO via pin header 1x Buttons (Reset Button, ADC Button, Power Button) 2x LEDs (red, blue) 1x IR circuit, support infrared remote control |
|
RTC |
Support |
|
Sleep/Wake up |
Support |
|
Power Supply |
DC-in 12V, 1x DC-in Slot, 1x 4Pin header |
|
Temperature |
Operating Temperature: -20℃ - 60℃ Humidity: 5%~95%RH, no condensation |
|
Storage Temperature: -40℃ - 85℃ Humidity: 5%~95%RH, no condensation |
|
|
Dimensions(W x D) |
146 x 102mm |
|
OS |
Android 6.0 |
