● Build-in 1GB DDRIII memory and 8GB eMMC
● On-chip ARM Mali-400MP2 GPU, support 4K HDMI output and dual-screen sync displays
● Supports Ethernet, WiFi, BT, 3G/4G Network expansion
● Size only 164mm x 107mm x 30mm（W x D x H）, Fanless, Low power consumption
● Support Android6.0
- Detail
- Parameter
- Downloads
- Video
Introduction

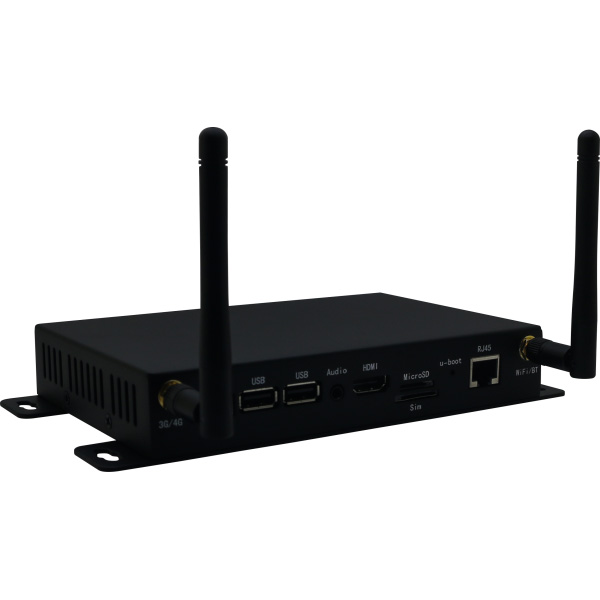

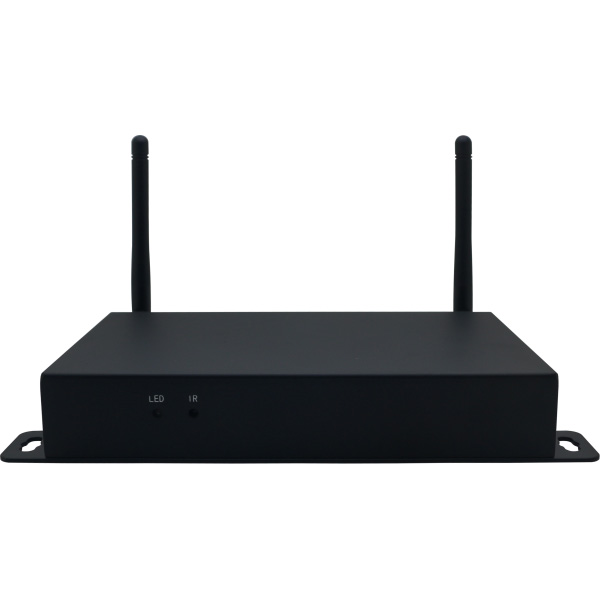

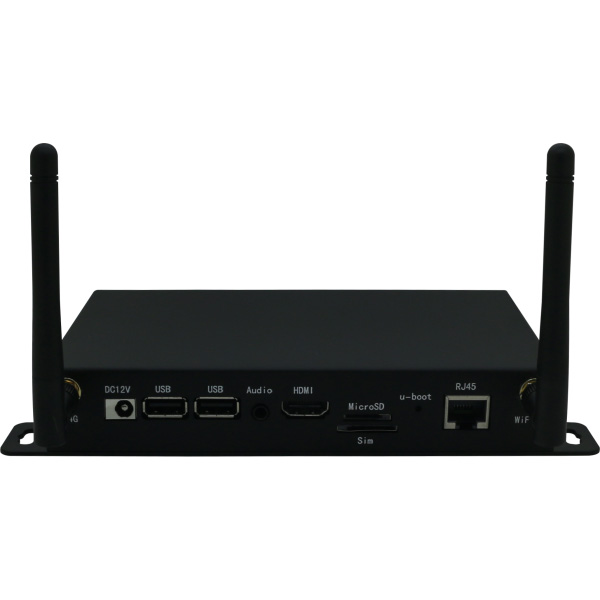

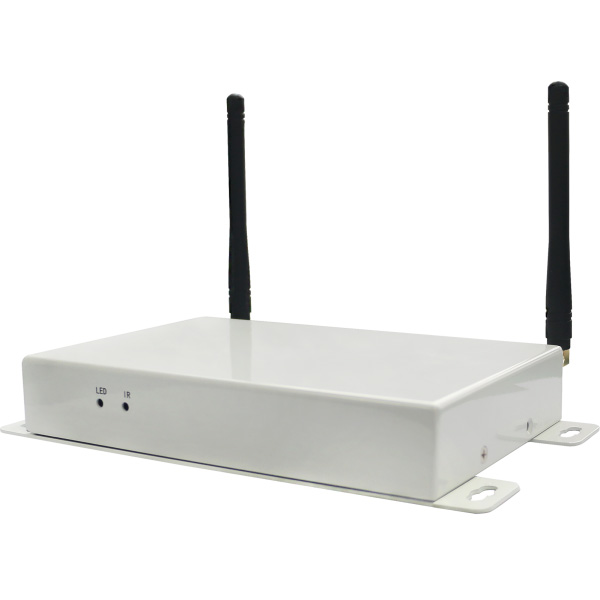

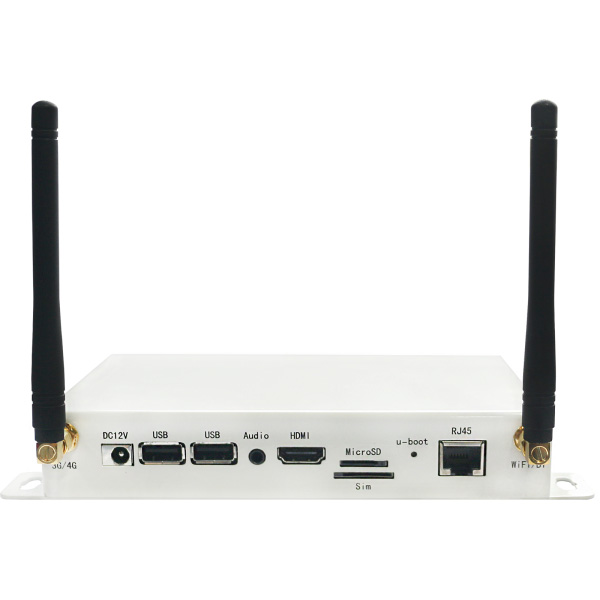

Android mini PC（DJ-MBox64） is based on Allwinner ARM Cortex-A53 64bit A64 Quad core low power consumption, high performance processor, frequency up to 1.3GHz, which supports 4K, H.265/H.264 video decoding. And also provides HDMI, USB, LAN and other application interfaces, which can be fully applicable to Self-service terminal, Vending machine, Industrial computer, Information equipment, Digital signage, Advertising machine, Kiosk and others.
Both sides of the device are designed with fixed holes for easy installation in different applications.
Features
● Allwinner ARM Cortex-A53 A64 Quad-core processor up to 1.3GHz
● Build-in 1GB DDRIII memory and 8GB eMMC
● On-chip ARM Mali-400MP2 GPU, support 4K HDMI output and dual-screen sync displays
● Supports Ethernet, WiFi, BT, 3G/4G Network expansion
● Size only 164mm x 107mm x 30mm（W x D x H）, Fanless, Low power consumption
● Support Android6.0
|
Model |
DJ-MBox64 |
|
Color |
Black and White |
|
Material |
Metal |
|
Dimensions |
164mm x 107mm x 30mm（W x D x H） |
|
Motherboard |
DJ-A6400 |
|
CPU |
Allwinner ARM Cortex-A53 A64 Quad-core, frequency up to 1.3GHz |
|
GPU |
On-chip Mali-400MP2，Support 4K、H.265 hardware decoding |
|
Memory |
On-board 1GByte DDR3 |
|
Flash |
On-board 8GByte eMMC |
|
Ethernet |
1x RJ45 LAN, 10/100Mbps |
|
3G/4G |
On-board Mini PCIE slot with SIM Slot, support3G/4G modules |
|
WIFI/BT |
On-board WiFi/BT Modules |
|
USB |
2x USB Type A（One of them cum OTG） |
|
TF Slot |
1 x TF Slot |
|
Audio |
1 x Headphone, 3.5mm Jack 1 x MIC IN Support 8 ohm/10W audio power amplifier, build in Speaker JACK |
|
Display |
1 x HDMI Out, 1920*1080 at 60Hz |
|
IR Receive |
Support |
|
RTC |
Support |
|
Button |
1 x u-boot button |
|
LED |
1 x Power LED |
|
Power |
DC 12V |
|
Operational Temperature |
-20 ~ 60 ℃（Humidity 5% ~95%） |
|
OS |
Android6.0 |
