DJ-i.MX 8M Mini-KIT is used for rapid evaluation and development of DJ-i.MX 8M Mini-CORE core board. Based on powerful NXP Embedded i.8M Mini multi-core processor, it is designed with many application function interfaces and perfect drivers, which can effectively reduce the development difficulty of target products, simplify the development cycle and greatly shorten the time to market.

DJ-i.MX 8M Mini-CORE core board is based on NXP's processor i.MX 8M Mini, which is designed through 14LPC FinFET technology for fast frequency and high power efficiency. With industrial and commercial certification and NXP support, the i.MX 8M Mini family is suitable for industrial and Internet of things .

CES-5260-CORE is a high performance, low power consumption embedded ARM motherboard. Based on Samsung high-end mainstream processor: six-core architecture, dual core Cortex-A15+ quad core Cortex- A7, frequency up to 1.7GHz. Using 28nm HKMG process, configured with Mali - T628 MP3 GPU. Exynos5260 support 32k/32 L1 cache, 1MB L2 cache, Enhanced VFP (floating point architecture), Neon coprocessor, DMIPS / MHz increased about 40% compared with the previous generation Cortex-A9 1.5 Ghz processor.

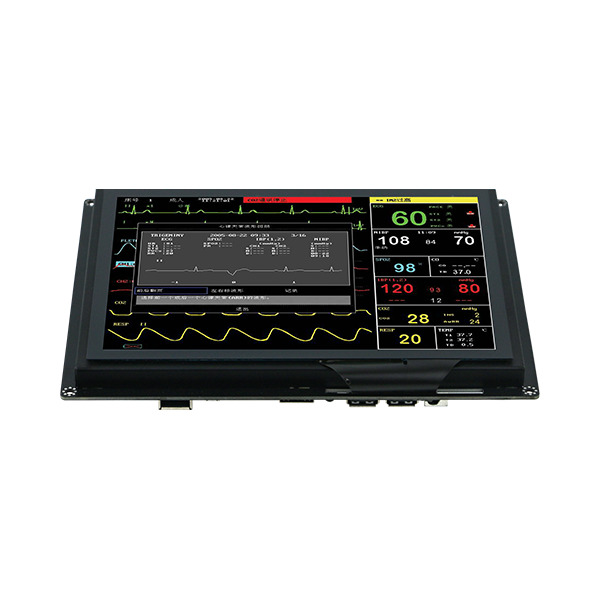

Android industrial control all in one machine 10.4 inch capacitance touch embedded intelligent device terminal platform

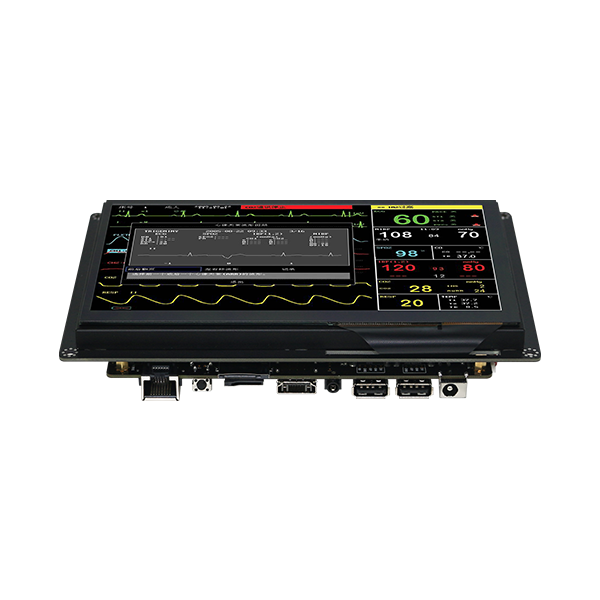

Android industrial control all in one machine 10.1 inch capacitance touch embedded intelligent device terminal platform

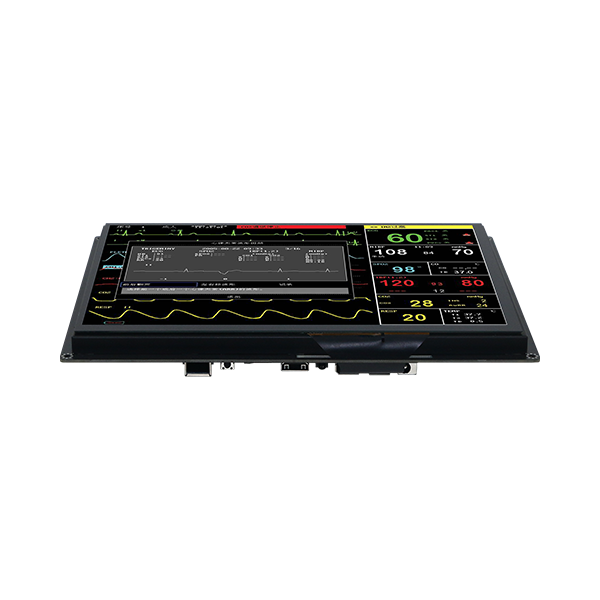

Android industrial control all in one machine 8 inch capacitance touch embedded intelligent device terminal platform

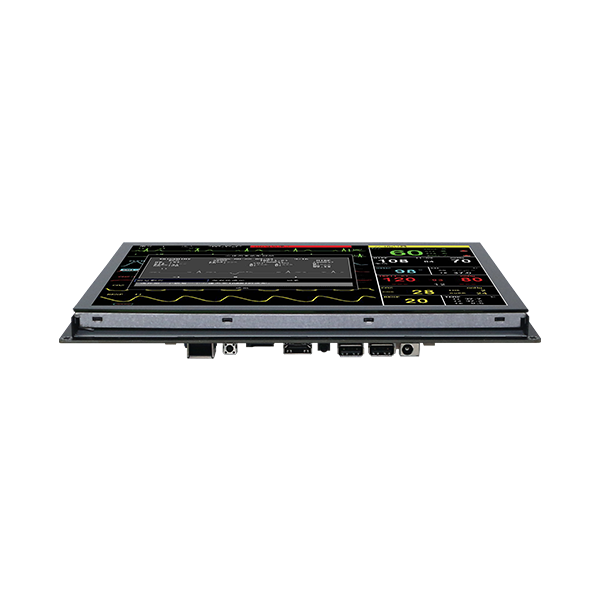

Android industrial control all in one machine 7 inch capacitance touch embedded intelligent device terminal platform

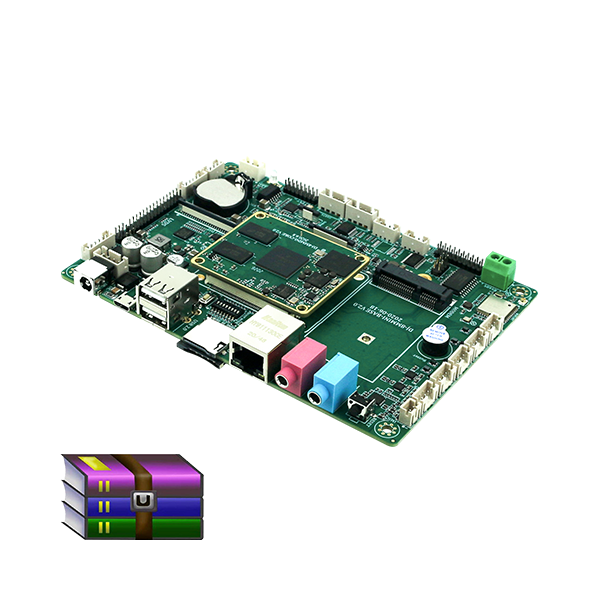

DJ-i.MX 8M Mini is an ARM 3.5” industrial Motherboard based on NXP i.MX 8M Mini 4x Arm® Cortex®-A53 and 1x Arm® Cortex®-M4 processor, frequency at1.8GHz, on-chip 3D/2D GPU and 1080p VPU, support for OpenGL2.0, it offers rich interface such as Gbit Ethernet, 6 USB2.0, 4 UART, 15 GPIOs, MIPI / LVDS also features Mini-PCIe,M.2, SIM card slots for integrating Wi-Fi, Bluetooth and 3G/4G modules.

It ideal for Industrial Automation, Smart Embedded Device, Self-service terminal, IoT application, Energy, Medical Device, Building automation, Digital Signage and much more.

● Rockchip ARM® 2x Cortex-A72 and 4x Cortex-A53 64-bit RK3399 up to 1.8GHz
● Onboard 2GB DDRIII Memory and 8GB eMMC
● Dual Channel 30/24/18bit LVDS, HDMI2.0 4k at 60Hz, eDP1.3 (4 lanes with 10.8Gbps), support HDMI In
● On-chip Mail-T864 GPU, support 4K H.264/H.265 video decoder
● Onboard WiFi/BT modules, mini-PCIE for 4G optional with SIM slot
● 7x USB（3.0/2.0）,6x UART,1x GbE Lan, 1x TF Slot
● Support Android8.1 and Android7.1
