● Build-in 2GB DDRIII memory and 8GB eMMC
● On-chip ARM Mali-T764 GPU, support 4K HDMI output and dual-screen async displays
● Supports gigabit Ethernet, WiFi, BT, 3G/4G Network expansion
● Size only 164mm x 107mm x 30mm（W x D x H）, Fanless, Low power consumption
● Support Android7.1 and Android5.1
- Detail
- Parameter
- Downloads
- Video
Introduction

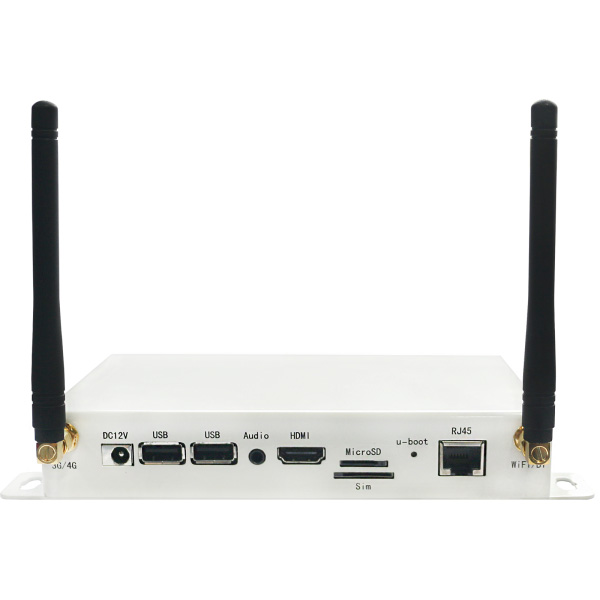

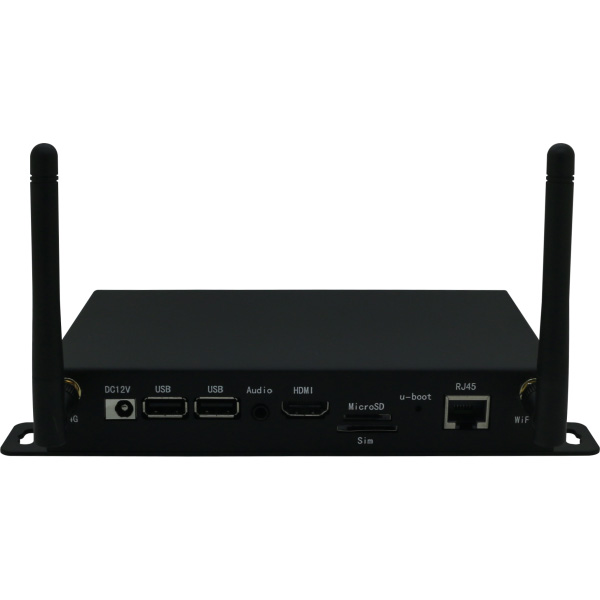

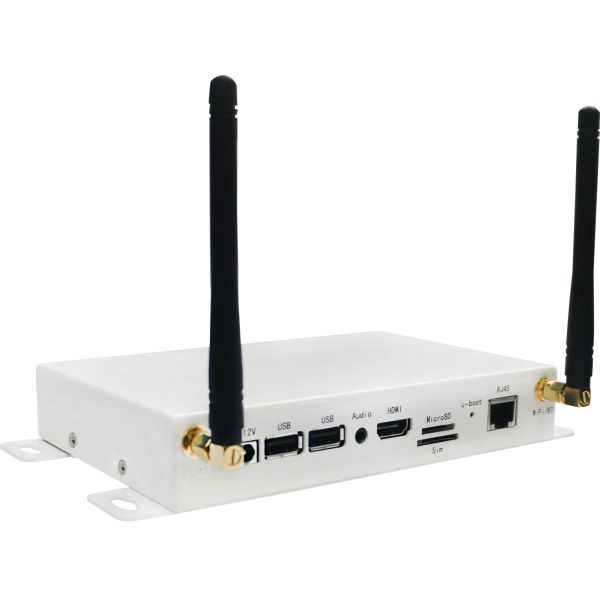

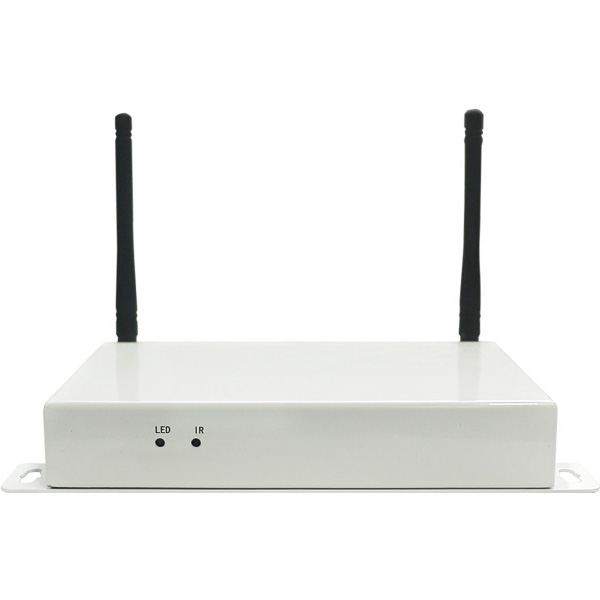

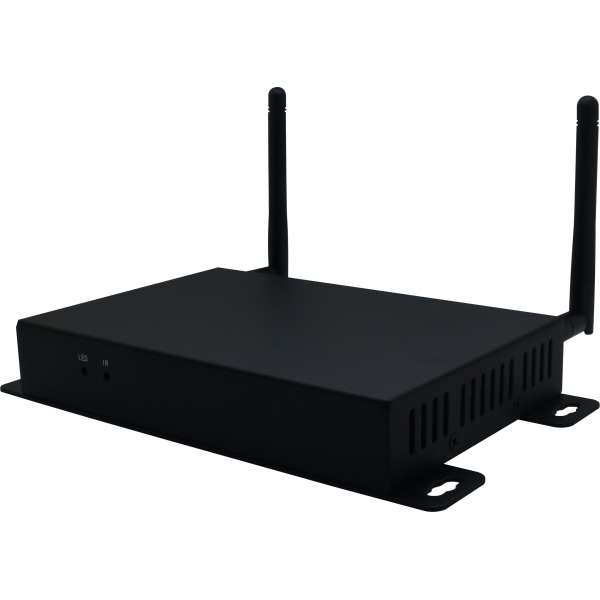

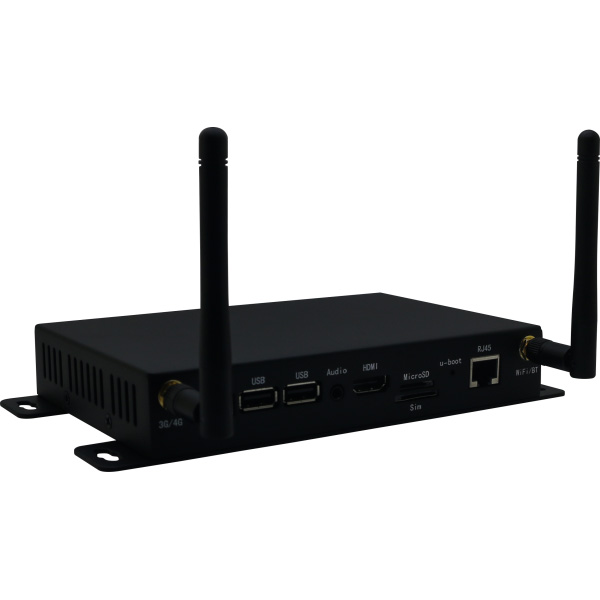

Android mini PC（DJ-MBox3288） is based on Rockchip new generation of superior performance RK3288 Cortex-A17 Quad-core application processor, frequency up to 1.8GHz, on-chip Mali-T764GPU, perfectly support 4K, H.265/H.264 Video decoding. And also provides HDMI, USB, LAN and other application interfaces, which can be fully applicable to Self-service terminal, Vending machine, Industrial computer, Information equipment, Digital signage, Advertising machine, Kiosk and others.
Both sides of the device are designed with fixed holes for easy installation in different applications.
Features
● Rockchip ARM Cortex-A17 RK3288 Quad-core processor up to 1.8GHz
● Build-in 2GB DDRIII memory and 8GB eMMC
● On-chip ARM Mali-T764 GPU, support 4K HDMI output and dual-screen async displays
● Supports gigabit Ethernet, WiFi, BT, 3G/4G Network expansion
● Size only 164mm x 107mm x 30mm（W x D x H）, Fanless, Low power consumption
● Support Android7.1 and Android5.1
|
Model |
DJ-MBox3288 |
|
Color |
Black and White |
|
Material |
Metal |
|
Dimensions |
164mm x 107mm x 30mm（W x D x H） |
|
Motherboard |
DJ-3288A/K |
|
CPU |
Rockchip ARM Cortex-A17 RK3288 Quad-core, frequency up to 1.8GHz |
|
GPU |
On-chip Mali-T764，Support 4K、H.265 hardware decoding |
|
Memory |
On-board 2GByte DDR3 |
|
Flash |
On-board 8GByte eMMC |
|
Ethernet |
1x RJ45 LAN, 10/100/1000Mbps |
|
3G/4G |
On-board Mini PCIE slot with SIM Slot, support3G/4G modules |
|
WIFI/BT |
On-board WiFi/BT Modules |
|
USB |
2x USB Type A（One of them cum OTG） |
|
TF Slot |
1 x TF Slot |
|
Audio |
1 x Headphone, 3.5mm Jack 1 x MIC IN Support 8 ohm/10W audio power amplifier, build in Speaker JACK |
|
Display |
1 x HDMI Out, 3840 x 2160 at 60Hz |
|
IR Receive |
Support |
|
RTC |
Support |
|
Button |
1 x u-boot button |
|
LED |
1 x Power LED |
|
Power |
DC 12V |
|
Operational Temperature |
-20 ~ 60 ℃（Humidity 5% ~95%） |
|
OS |
Android5.1/Android7.1 |
